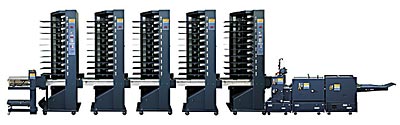

BST50d with T series bookletmaker and TD-T receiving stacker
C.P. Bourg has the most flexible and proven accessories in its class.
With an impeccable reputation for design simplicity and ease of use,
Bourg has been producing finishing accessories since 1960. C.P. Bourg
manufactures four classes of accessories to accommodate collators, high-speed
printers, and off-line applications.
Traditional “T” accessories Stitch (AGR-T)/ Fold (PA-T)/
Press (BBP-T) / Trim (TR-T) will produce 3,200+ booklets per hour – GUARANTEED!
These accessories are caster mounted for ease of use anywhere: on-line
with the BST-d Collator or off-line behind the copier. The modular design
allows for system or component operation, as the application dictates.
Receding stacker and criss-cross receiving jogger complete the line,
making collating easy and efficient.
Additional BSTd and BSTd+ Accessories
Bourg Document Finisher (BDF)
Signature Booklet Maker 4th Generation (SBM4)
|
S p e c i f i c
a t i o n s |
| Sheet size |
AGR-T Stitcher |
PA-T Folder |
BBP-T Book
Press |
TR-T Trimmer |
TD-T Stacker |
| Max. Set Size |
13.75" x 19.6" |
13.75" x 9.6" |
13.75" x 9.6" |
13.75" x 9.8" |
13" x 18" |
| Min. Set Size |
4.6" x 7.9" |
4.6" x 8" |
4.6" x 4" |
4.6" x 4" |
NA |
| Maximum speed |
3,500 per hr. |
3,500 per hr. |
3,500 per hr. |
3,400 per hr. |
5,500 per hr. |
| Power |
115 volt, 60
Hz |
115 volt, 60
Hz |
115 volt, 60
Hz |
115 volt, 60
Hz |
115 volt, 60
Hz |
| Length |
23" |
28" |
12" |
62" (w/conv.) |
23.5" |
| Width |
24.5" |
24.5" |
24.5" |
24.5" |
29.5" |
| Height |
43" |
29" |
29" |
30" |
29" |
| Weight lbs. |
250 |
295 |
450 |
275 |
157 |
|
|
 |
