SUCTION For paper pick-up and feeding ...eliminates
tracking
PRODUCTION Up to 9000 sets per hour ...10 stations per tower
ELECTRONICS Improve productivity with unique bin programming
ECONOMICS Process the same volume of jobs with up to 33% less cost
DURABILITY Heavy-duty construction ...it's the "Workhorse of Verticals"
The Bourg Suction Tower (BST-d) is a modular, vacuum-feed, vertical collating
system capable of producing more than 9,000 sets per hour. The BST is a
true vacuum-feed system, incorporating suction feed belts and air-blast
sheet separation. This system can be expanded, helping to eliminate obsolescence.

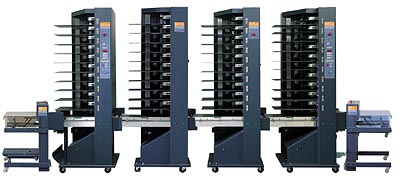

The base collator (BST10d RH Main) consists of 10 bins,
and can be married to additional (BST10d Add and BST10d LH Main) towers
(each with 10 bins),
to a total of six towers or 60 feed bins. The BST-d 10/60 incorporates
full, flexible programming with memory, automatic double and miss
detection, calibration, and ascending or preset/reset counting. Recently
introduced
is BST-d+ Windows based touch screen fully automated tower.
Bourg BST-d and BST-d+ True Air-Suction Collators
- The
world's fastest vertical collator at 9,000+ sets per hour.
- Handles the widest range of stocks. Change over from 9lb to 10pt instantly,
or collate all weights at the same time!
- Nine (BSTd) or over one-hundred (BSTd+) user-friendly programmable channels
kept your jobs in memory for quick recall, anytime!
- "Copy", "skip", "jump", & "interleaf" programming
features make any job easy.
- Control suction, air blast, and transfer
speeds from the digital control panel.
- 8-part feed mechanism & 4-part
sheet separation process provide for complete control and no marking
of stocks!
- Advanced transfer technology eliminates the need
for outdated sucker feet.
- Two internal turbines per tower eliminate
the need for external vacuum pumps.
- Feed trays are independently
controlled and fully programmable.
- Durable design weighs
770 lbs. Strong, low maintenance, & very
easy to operate.
Program Features
- High flexibility paper feeding device.
- Load cover
sheet while run (double cover function).
- Load while run (copy function).
- Insert sheet between certain number of sets (insert function).
- Make a collating jobs with a sequence of programs to allow complex set
structure.
- High productivity mode for multi-tower configuration.
Reasons to buy a BST-d+
The key point is the user-friendliness designed
into the Windows-based touch screen control monitor and the easier
access to advanced features
in the BST-d+.
BST-d+ advantages
- Touch-screen easy setup.
- Short run jobs can be easily made.
- The easiness of use allows frequent setup changes.
- Collating complex jobs are made extremely easy.
- The requirement for the operator training is reduced.
- The air blower and the vacuum levels can be adjusted
while the collator runs.
- The sheet feeding sequence within the Insert mode
or during a Combo sequence has been optimized for an improved productivity.
Now
a Combo can have up to 18 sequences of collating jobs in a row (9 only
on the BST-d).
- Programs can be saved with names and a job description.
There can be hundreds of programs saved and recalled in the memory
(9 programs numbers
only in the BST-d).
Available BSTd and BSTd+ Accessories
C.P. Bourg has the most flexible and proven
accessories in its class. With an
impeccable reputation for
design simplicity
and ease of use, Bourg has been
producing finishing accessories since 1960.
Traditional (T) Series
heavy-duty stitcher, folder, book press, & trimmer
Bourg Document Finisher (BDF)
Signature Booklet Maker 4th Generation (SBM4)
For added flexibility an off-line bookletmaker feeder
(DA-T) and collator marrying station (HMU) are available. Additionally,
recently introduced
is the (UTTS) interface ramp which allows for the use of your existing
or new high-profile “Professional/AE Series” bookletmakers
with any of the BST series collators.
